All components are manufactured to the highest British and International standards. Wherever the requirement is for unequalled safety and continuous, efficient performance and reliability, be sure to insist on SCAFFOLD CONNECT as your Scaffolding material provider.



















































































































SAFESTAGE
Features:

- 48.3 diameter x 3.2mm thick high grade steel or 4mm grade 43A available

- "V" Pressings in clusters at 495mm intervals that provide connection points   for Ledgers and Transoms

- Transoms are in the form of inverted T or rolled section with wedge fixing   devices at each end

- Fit into lower "V" Pressing on standards




RINGLOCK

Features:

- 48.3 diameter x 3.2 thick high grade steel standards with a rosette at 500   centres

- Up to 8 connections made at one level

- Narrow openings in rosette position the ledgers at right angles

- Wide openings in rosette allows alignment of ledgers and diagonal braces at   the required angle

- Connected by sliding wedge head forming part of the ledger over the   rosette and inserting wedge into opening





SAFELOK

Features:

- 48.3 diameter x 3.2/4mm thick high grade steel

- Lower fixed cups at 500mm centres

- Top cups allow 4 components

- Horizontals locate in bottom cup of standard

- Forged blade ends for strength



FORGED FITTINGS

Features:

Drop Forged Double

Code SF03




FORGED FITTINGS

Features:

Drop Forged Single

Code SF05




FORGED FITTINGS

Features:

Drop Forged Swivel

Code SF04





PRESSED FITTINGS

Features:

Pressed Steel Double

Code SP01



PRESSED FITTINGS

Features:

Pressed Steel Single

Code SP03





PRESSED FITTINGS

Features:

Sleeve Type 1

Code SP04



PRESSED FITTINGS

Features:

Press Steel Swivel

Code SP02



ANCILLARIES

Features:

Girder Coupler

Code SF06



ANCILLARIES

Features:

Board Retain Clamp

Code SP05



SAFELOK STAIRCASES

Features:

2.0m Staircase Aluminium

Code SA20



SAFELOK STAIRCASES

Features:

1.5m Staircase Aluminium

Code SA21




SAFESTAGE STAIRCASES

Features:

Staircase Aluminium

Code SA22 (550 Wide)
Code SA23 (850 Wide)






ACCESSORIES

Features:

4.5 Ton S.W.L Base Jack (Hollow)

Code SA01




ACCESSORIES

Features:

CROSS BEAM

Code SA10




ACCESSORIES

Features:

3 Board Easyfix Transom
Code SA10

4 Board Easyfix Transom
Code SA61

5 Board Easyfix Transom
Code SA28

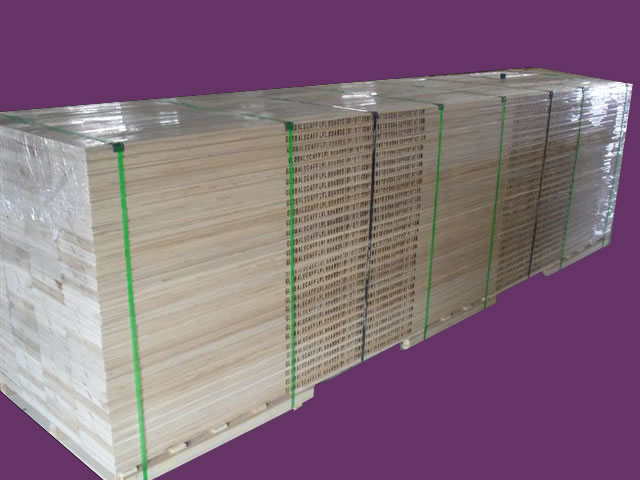

LVL SCAFFOLD PLANK





Material: Pine

Glue: Phenolformaldehyde adhesive (WBP)

Standard Size: 38/42mm thickness X 220/225/230/235mm Width x 2.43/3.0/3.66/3.9/3.964/4.88/6.0m or customer requirement

Standard: OSHA&ANSI, A10& (US) BS2482 (UK) AS1577 (AUS)

all scaffold planks (boards) are continuously embossed with OSHA stamp (Certifying that each LVL plank is manufactured and tested in accordance with ANSI standardsas well as adherence to the OSHA standard 29CFR 1926.451 and Subpart L. Appendix A), production date, end sealed to help stop moisture entry. Additionally, we regularly arrange hot water boiled and dry test for each shipment with ASTM standard in the laboratory, this determines the bonding strength of LVL planks (boards).

GALVANISED STEEL SCAFFOLD TUBE



Scaffold tube is readily available, from 0.3m (1ft) UPTO and inclusive 6.3m (21ft) All other lengths can be cut to required size upon request.

The outside diameter of our scaffold tube is 48.3mm with a wall thickness of 4mm or 3.2mm (high yield)

Our scaffold tube is fully galvanised and conforms to BS EN39:2001

SOFTWOOD SCAFFOLD BOARDS BS2482 ( Source UK/ Central Europe)


Our scaffold boards fully comply with the standards issued by the British Standards Institute and are monitored for quality under the ISO9003 accreditation. The BSI licence is applicable to both visually graded boards and machine graded boards. All BS2482:1981 scaffold boards are marked with the following information, which is embossed on to the end plates:

BS2482 and the BSI Kite mark
The letters VG (Visually Graded) or MG (Machine Graded)as specified by the customer
Customer details (if applicable)
The words 'support every l.5m max'
Size Range (38mm x 225mm) includes:

13ft (3.9m) tooth type end band
10ft (3.0m) tooth type end band
8ft (2.4m) tooth type end band
6ft (1.8m) nailed end bands using clout nail 30mm x 3mm
5ft (1.5m) nailed end bands using clout nail 30mm x 3mm


FIRE RETARDANCY - CHEMICAL IMPREGNATION TECHNIQUES
Flame and fire retardant scaffold boards are also available from our range. Using chemical impregnation techniques, both the flame and fire retardant treatments are guaranteed 'leach free'. Suitable fire retardant treatments are Dricon and Pyroguard as recommended by the National Access and Scaffolding Confederation (NASC).
